SPECIFICATIONS
AC Output Frequency: 60Hz ±2Hz
AC Output Voltage: 110V±15%
Application: Home Energy
Battery Capacity: 256Wh/460Wh
Battery Type: LiFePO4
Certification: FCC,RoHS
Charging Interface: External Charger Port and DC5521*1
DC Output Voltage: DC5V 2.4A, 2*USB; DC12V3A, 2*DC5521
Display screen: Yes
Feature 1: Camping Power Plant
Feature 2: portable power station
Feature 3: UPS Solar Generator
Feature 4: solar charging station
Model Number: Portable Power Station
Nominal Capacity: 25Wh/460Wh
Output Waveform: Pure Sine Wave
Rated Power: 300W/500W
Set Type: Charger Sets
Size: 271*172*228
Type: LiFePO4

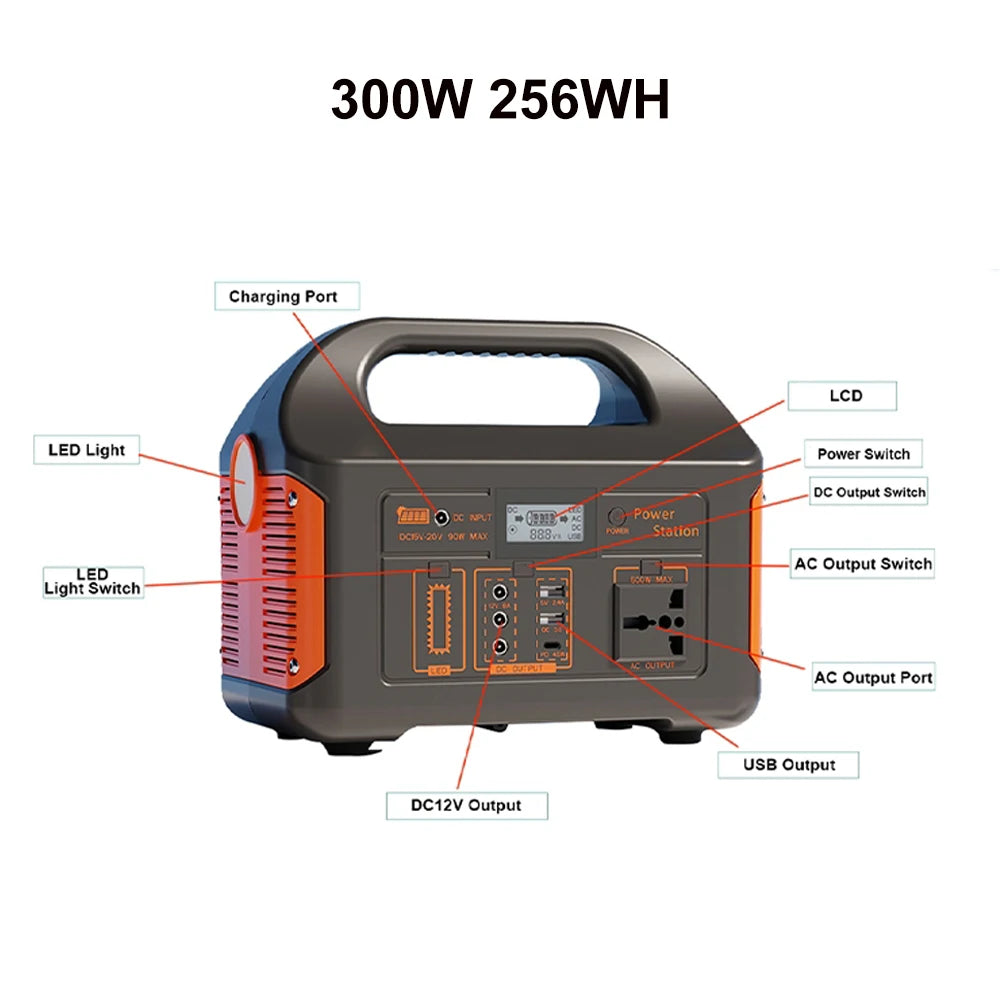

1. Rated Power：300W/500W
2. Output Waveform: Pure Sine Wave
3. AC Output Voltage: 110V ±5%
4. AC Output Frequency: 60Hz ±0.5Hz
5. Conversion Efficiency: Maximum Value>90%
6. Charging Interface: External Charger Port and Solar Panel Charging Port DC5521*1(Built in solar intelligent controller)
7. AC Output Socket: Universal Socket
8. DC Output Voltage: USB 5V 2.4A；QC3.0；PD45W；DC12V8A，3*DC5521 Port；
9. LED Light States：LED high beam, low beam, bright, half-bright, flashing, LED off 6 states
10. Battery Type：LiFePO4
11. Battery Capacity：12.8V 256WH /12.8V-460WH
12. Solar Panel Specifications (optional)：15V-20V Maximum 90W (Optional)
13. Charging Current：6A
14. AC Charger ：16V 5A
15. Charging Time：After full discharge, the battery capacity reaches 80% after 5 hours of charging
16. LCD ：Battery Capacity, Battery Voltage, State of Charge, State of Discharge
17. Heat Dissipation：Intelligent Temperature Control Cooling Fan，
Noise 1 Meter Distance < 45 dB
18. Protection Functions：Low Voltage, Over Voltage, Over Load, Over Temperature, Short Circuit
High-quality LiFePO4 Battery
This generator is equipped with LiFePO4 batteries, which can guarantee more than 3000 charging cycles. This high-quality battery pack ensures longer service life and safer use.
Advanced BMS Technology, Multiple Protections
Ultra-safe battery cells and advanced BMS technology provide multiple protections to ensure your devices and equipment are protected while charging, making it a reliable backup power source. More than 3000 cycles, with a service life of more than ten years.
√BMS intelligent protection system
√Overcharge protection
√Overcurrent protection
√Overvoltage protection
√Overheat protection
√Overload protection
√Short circuit protection

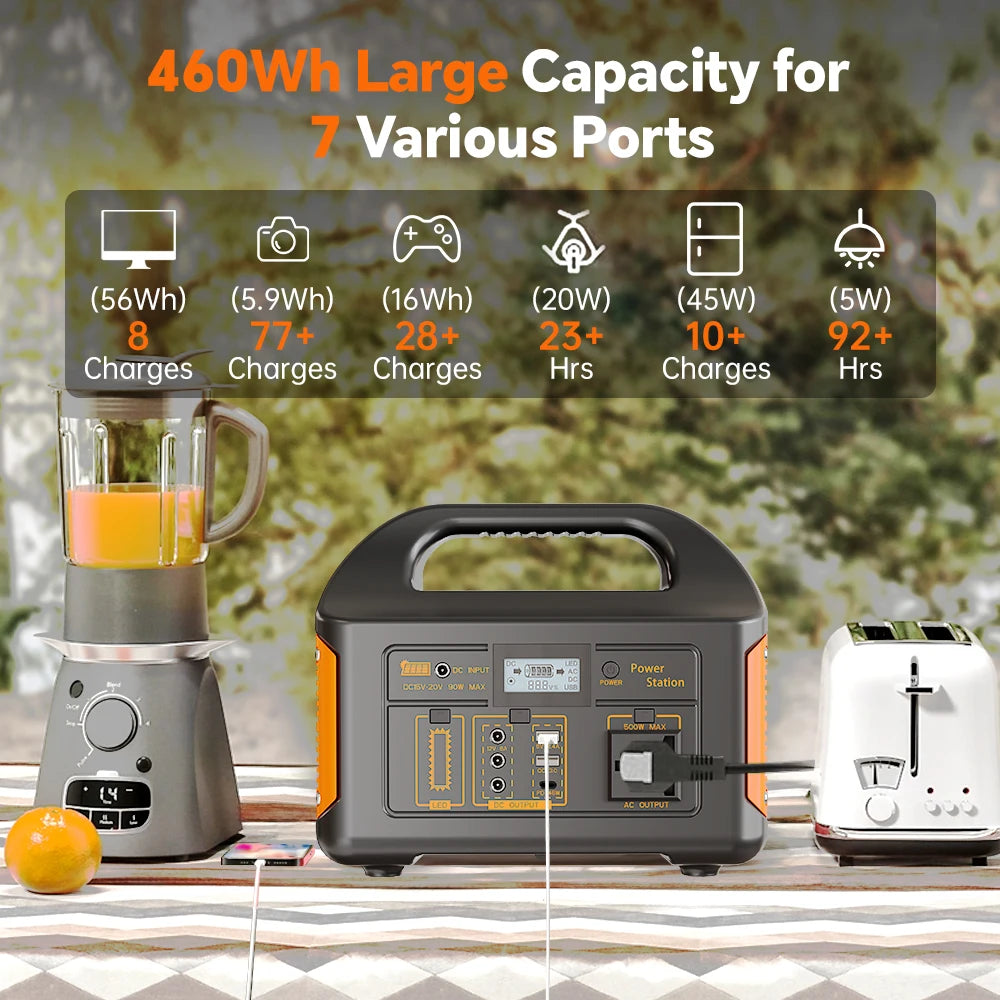

Large Capacity, Wide Range of Use
This portable solar power station has a large capacity of 256Wh/ 460Wh, which can meet various application needs, from outdoor camping, self-driving tours, and household emergency needs during the power period. Anytime, anywhere, sufficient power.

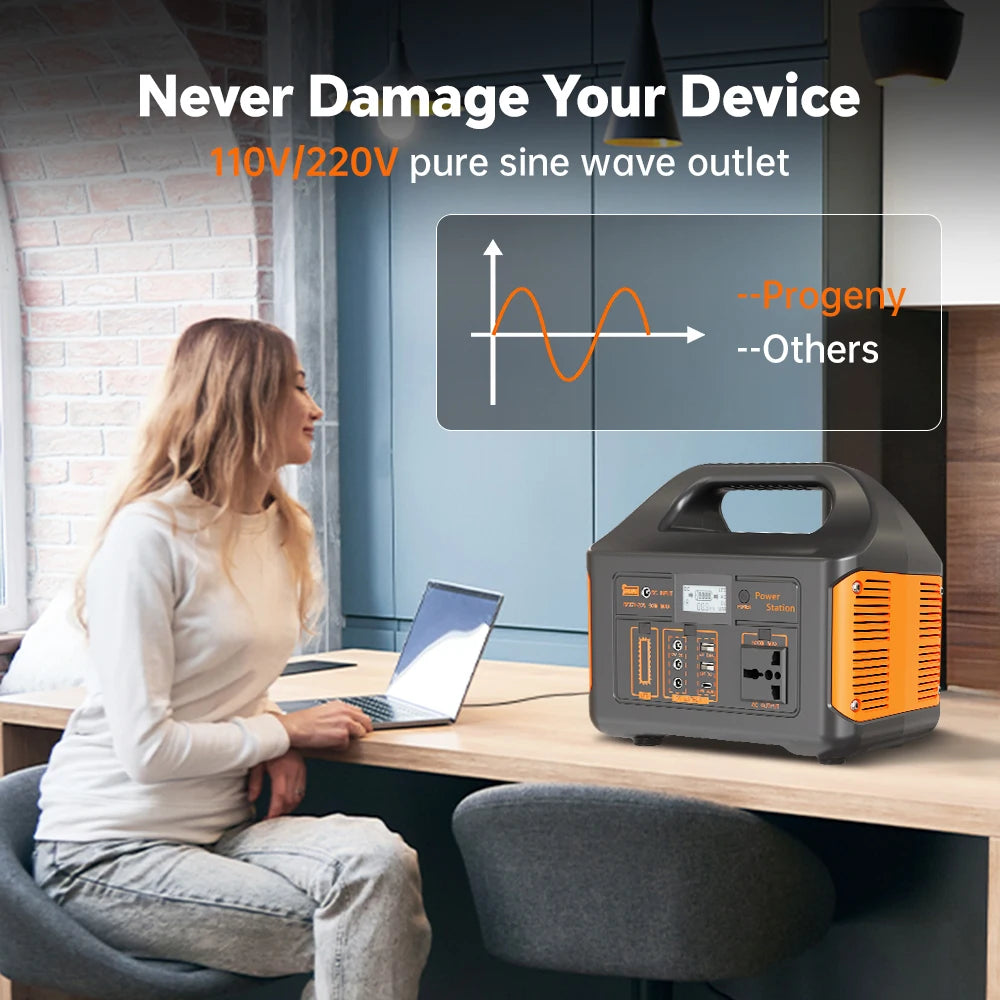

Sine wave output, more stable
Fast charging, safe and efficient
This portable outdoor generator is known for its safety and efficiency. It supports fast charging and includes multiple safety protections to ensure reliability and durability for outdoor use.
The power station has a sine wave output, which is more stable and will not damage your equipment.

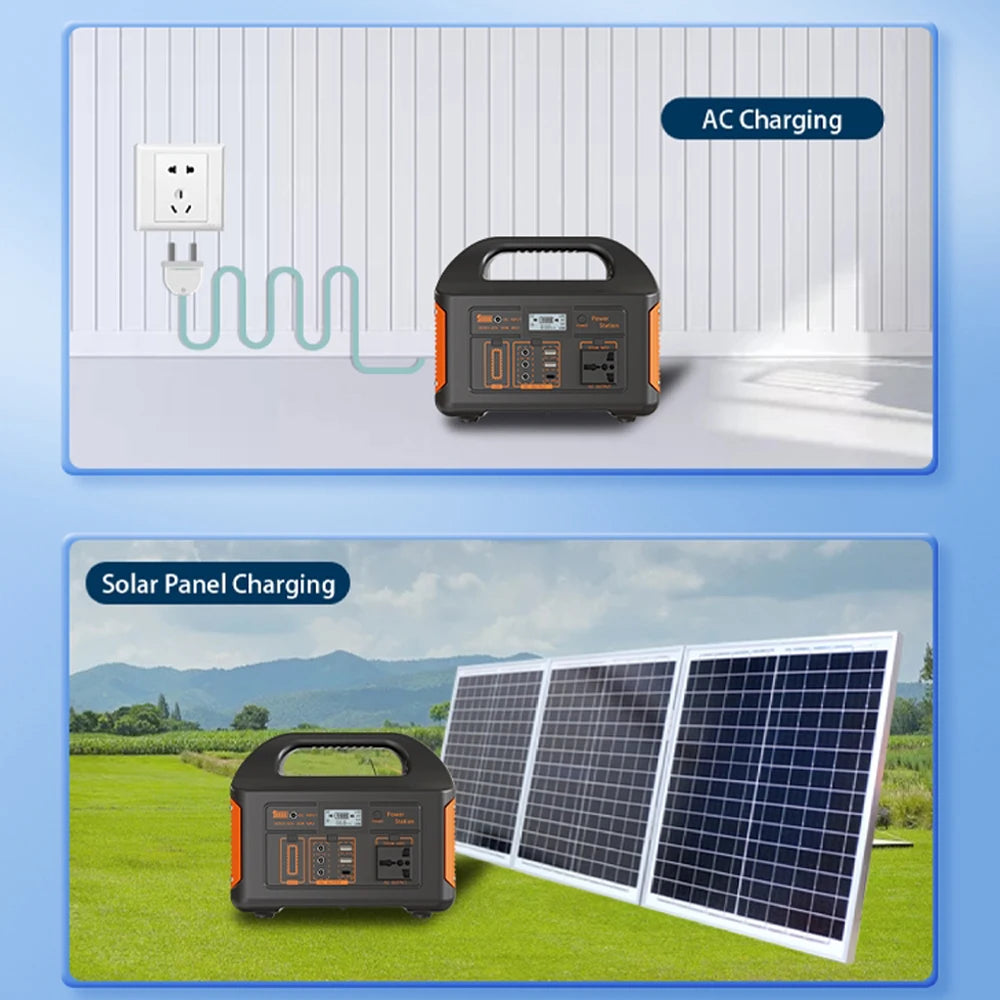

Multiple charging methods
Support solar charging, mains charging and car charging, you can do whatever you want at any time.
Excellent Workmanship
The shell is made of high-quality ABS material, which is anti-collision and not easy to damage internal parts. Equipped with a high-definition display, you can check the battery status at any time, and it is equipped with an ultra-portable handle for easy carrying.

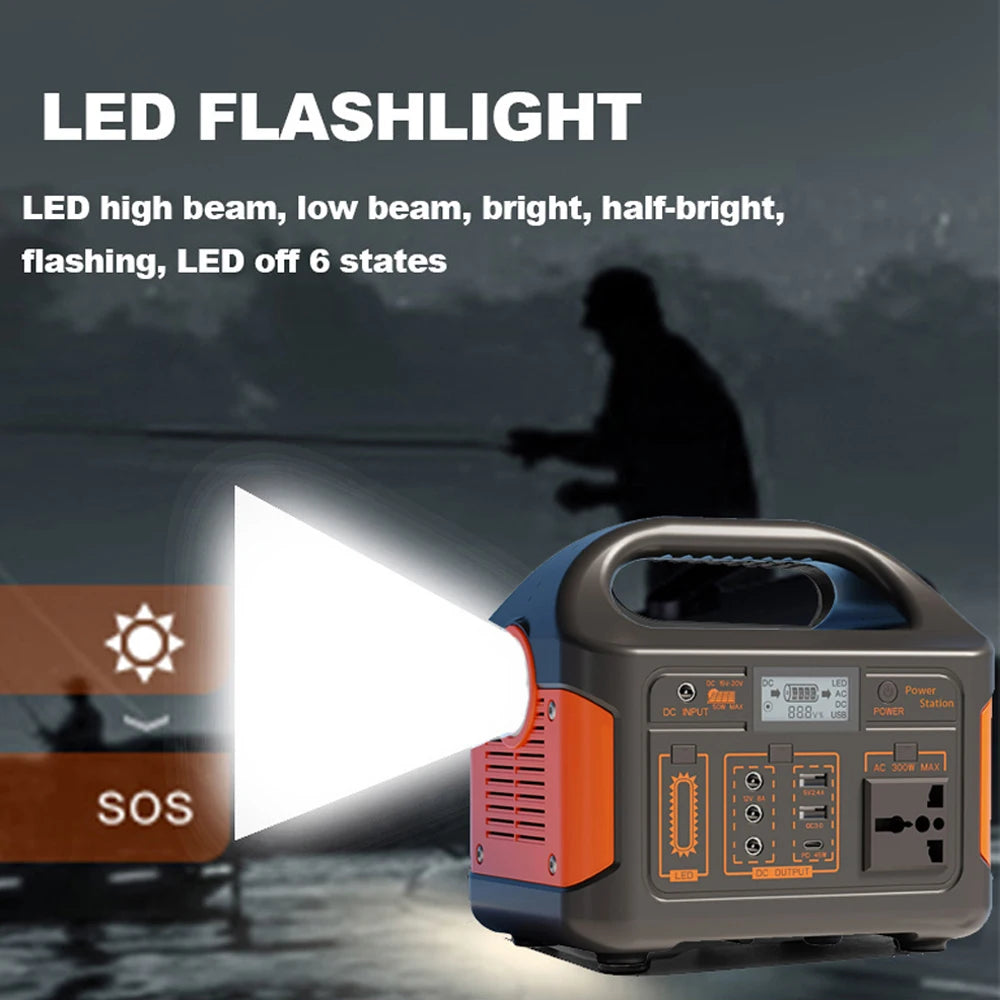

LED lighting, multiple output modes
This outdoor Power Station uses LED lighting with four modes: high brightness, half brightness, flashing and off.
Intelligent heat dissipation, noise reduction
Intelligent temperature-controlled cooling fan, <45 decibels at a distance of 1 meter, providing you with a more comfortable use experience.
Small and portable, powerful
This outdoor camping Power Station is better than other products on the market, with a smaller size and lighter weight while maintaining powerful functions. It can power a variety of electronic devices and is a convenient and reliable choice for outdoor use.
Multiple Application Scenarios
300W 500W power stations are suitable for home emergency power and outdoor camping backup power. They are suitable for use in a variety of scenarios and can meet your power needs anytime and anywhere.
Package List
300W/500W Power Station*1
Charger (US plug )*1
Product Manual*1
